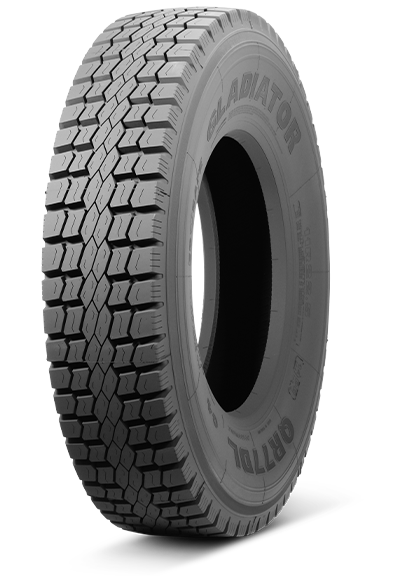

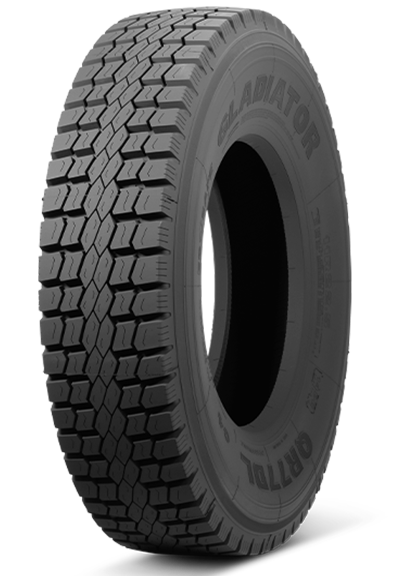

QR77DL

Commercial / Highway
  • Premium Open Shoulder Steel Radial Drive Position
  • Improved siping provides excellent and prolonged traction
  • Features
    • Premium Open Shoulder Steel Radial Drive Position
    • Improved siping provides excellent and prolonged traction
    • Drive position traction tire designed specifically for durability
  • Specifications
    SizePly RatingLoad Index (S/D)Speed SymbolTread Depth (32nds)Overall Diameter (In)Section Width (In)Load Capacity (S/D) LBSInflation Pressure (PSI)
    295/75R22.514144/141L2640.411.76175/5675110
    11R22.514144/142M2641.7116175/5840105
    11R22.516146/143M2641.7116610/6005120
    285/75R24.514144/141L2641.611.16175/5675110
    11R24.514146/143L2643.7116610/6005105
    11R24.516149/146L2643.7117160/6610120
  • Warranty

    GLADIATOR MEDIUM TRUCK RADIAL

    LIMITED WARRANTY
    100% FREE REPLACEMENT WARRANTY (Does not include QR86)

    American Pacific Industries, Inc. (API) hereby warrants every new Gladiator Medium Truck Radial tire manufactured AFTER August 1, 2014 (DOT date code 3414) for workmanship and material related conditions for the life of the original tread of a new tire less 2/32”. The life of the original usable tread ends when the tire tread has worn to 2/32” remaining as measured in the fastest wearing groove, at which point the tire is considered to be fully worn out. API will refund the cost of a replacement Gladiator Medium Truck Radial tire excluding FET. All Exclusions listed below void this 100% Free Replacement Warranty. Conditions and coverage are subject to change at any time and without notice.

    A) The Gladiator Medium Truck Radial tire must be replaced with a comparable new Gladiator Medium Truck Radial tire by an authorized Gladiator dealer. Copy of invoice may be required.
    B) Submission of claims covered by this warranty constitutes adherence to the terms of this warranty as detailed herein.
    C) Tires produced prior to August 1, 2014 (DOT date code 3314 and earlier) will be credited based on prorated tread depth remaining.
    D) Cost of mounting and balancing will be refunded up to a maximum of $16.00 per tire. Written proof of these costs will be required.
    E) 100% free replacement applies to new first quality tires only that are manufactured after DOT date code 3414. Blemished tires, retreads and road hazard tires are specifically excluded regardless of date of manufacture.
    F) Adjustments for ride complaints, out of balance or out of round tires are excluded from this warranty if they are worn past 2/32” from the original usable tread of the new tire as measured in the fastest wearing groove.

    STANDARD LIMITED WARRANTY FOR QR86

    API hereby warrants every new Gladiator QR86 Medium Truck Radial tire for workmanship and material related conditions for the life of the original tread of a new tire less 2/32” as stated above with the following exception: Credit will based on prorated tread wear as measured in the fastest wearing groove.
    All other stipulations and exclusions apply as above.

    CASING WARRANTY (Does not include QR86)

    A) Casings of Gladiator Medium Truck Radial tires are warranted for workmanship and material related conditions through the life of the second retread. The life of the second retread is considered to end when the remaining tread on the second retread reaches a buffing stage of 2/32” or less as measured in the fastest wearing groove.
    B) If an examination shows that a casing of a Gladiator Medium Truck Radial Tire was removed from service due to workmanship or a material related condition, API will give a credit toward the
    All 17.5 inch rim sizes: $30.00
    All 19.5 inch rim sizes: $30.00
    255/70R22.5, 275/70R22.5: $65.00
    11R22.5, 12R22.5, 295/75R22.5, 295/80R22.5: $90.00
    315/80R22.5 $85.00
    11R24.5, 285/75R24.5, 12R24.5: $90.00

    Above casing warranty valid only for first five (5) years after date of manufacture of original tire.

    GLADIATOR QR86 CASING WARRANTY

    Gladiator QR86 Medium Truck Radial tire casings are warranted through the life of the first retread. API will give credit as follows:
    11R22.5, 11R24.5: $50.00

    All other casing stipulations and exclusions apply as above.

    EXCLUSIONS

    A) All Gladiator Medium Truck Radial warranties are limited to the original purchaser and the original vehicle on which they are mounted for a period of five (5) years from the date of manufacture, and are not assignable to subsequent purchasers or vehicles.
    B) The Gladiator Medium Truck Radial warranties are applicable only in the United States and Canada and any tire used or equipped on a vehicle registered or operated outside the United States and Canada are not covered by this warranty.
    C) The following is not covered by the Gladiator Medium Truck Radial Warranty:
        1) Tire branded or marked “Non-Adjustable” (N/A) or “Blemished” (Blem), or previously adjusted.
        2) Failure, damage or irregular wear due to:
            a) Road hazards (i.e. puncture, cut, snag, impact breaks, etc.);
            b) Fire, accident or vandalism;
            c) Mechanical condition of vehicle, including improper alignment, improper inflation, wheel imbalance, faulty shocks or brakes;
            d) Overloading the tire beyond maximum load capacity stated on the sidewall;
            e) Misapplication of tire, use of improper inner tube/ flap;
            f) Alteration of the tire or addition of foreign material. Also transfer from one vehicle to another and tire failure due to faulty retread process or materials.
        3) Cost of mounting and balancing service except as noted above.
        4) Loss of time or use, inconvenience, or any incidental damages to include cost of towing or transportation, related property damage or consequential damages of any type or nature except as prohibited by law.
        5) Tires older than five (5) years from the date of manufacture as determined by the DOT/Serial number.
        6) Tires with an ST designation that are deemed out-of-round or out-of-balance

    OWNER’S OBLIGATIONS

    In order to be eligible for Gladiator Medium Truck Radial Warranty service, the owner must:
    A) Present the tire to an authorized dealer;
    B) Present proof of purchase to the satisfaction of the dealer;
    C) Complete and sign an API Warranty Claim Form, which is available at any authorized dealer; and
    D) Pay the amount due on a new tire, less the amount of credit, including taxes, mounting and balancing charges or cost of other services ordered.

    DISCLAIMER

    This warranty, or any warranty stated or referred to herein, is exclusive and in lieu of any other warranty regarding the quality of Gladiator Medium Truck Radial Tires, whether expressed or implied, and remedies for breach thereof shall be limited to those specifically provided herein.
